726-601 | WAGO

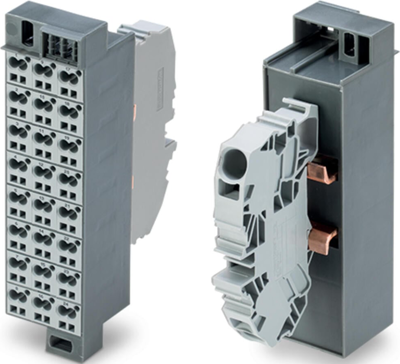

Common potential matrix patchboard, 726-601, WAGO

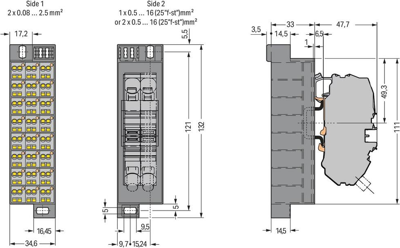

Enjoy error-free electrical installation with this common potential matrix patchboard. Ensure that the strip length is between 8 mm and 10 mm when connecting conductors to this common potential matrix patchboard. This product features a conductor terminal and utilizes CAGE CLAMP as well as Push-in CAGE CLAMP. Push-in CAGE CLAMP connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be pushed in without the need for tools-all thanks to its pluggable design. Our reliable and maintenance-free CAGE CLAMP connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. Dimensions: 34.6 x 132 x 84.2 mm (width x height x depth). This common potential matrix patchboard is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm² on one side and for conductor cross sections ranging from 0.2 mm² to 16 mm² on the other side. The dark gray housing is made of polyamide (PA66) for insulation. Rated current: according to IEC/EN 24 A, according to IEC/EN 2 76 A.
