774-9994/216-501 | WAGO

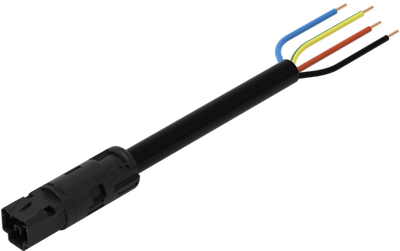

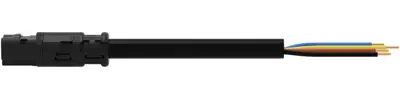

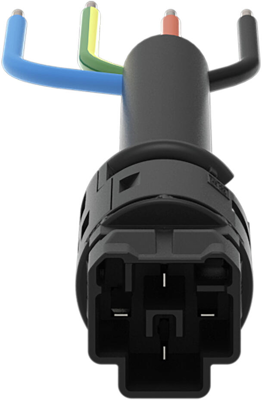

Connection cable, 5 m, plug straight to open end, 1.5 mm², 774-9994/216-501
Unit Price (€ / pc.)
33.7008 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connection cable, 774-9994/216-501, WAGO
Connecting line for power and signal transmission. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. This product fits perfectly into boreholes or conduits due to its design.
Features
- Suitable for any application
- Ready for immediate use
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable length | 5 m | |
| Connection 1 design | straight | |
| Connection (1) | plug | |
| Version | connection line | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
