774-9994/216-401 | WAGO

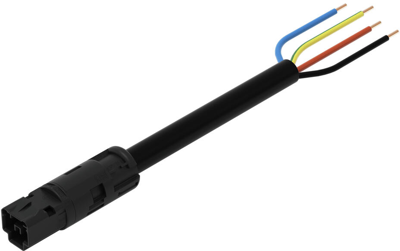

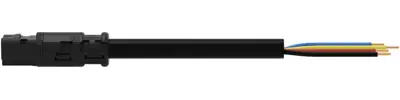

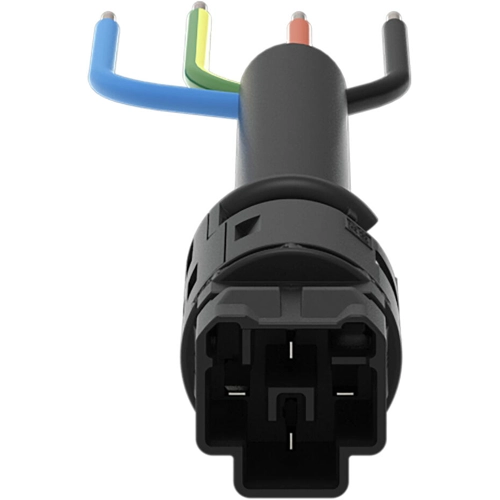

Connection cable, 4 m, plug straight to open end, 1.5 mm², 774-9994/216-401
Unit Price (€ / pc.)
29.7381 € *
Standard delivery time from the manufacturer is: 5 Weeks
Connection cable, 774-9994/216-401, WAGO
This Connecting line allows assembly of fine-stranded and solid conductors. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20.
This product fits optimally into conduits or boreholes due to its design. The Connecting line is free of halogen. This eliminates the addition of environmental pollutants during production. It also increases the fire class, since halogen-free materials are flame-resistant.
Features
- Suitable for any application
- Guarantees safe use
- Quick replacement of defective units during ongoing operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Cable length | 4 m | |
| Connection 1 design | straight | |
| Connection (1) | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
