771-8985/107-603 | WAGO

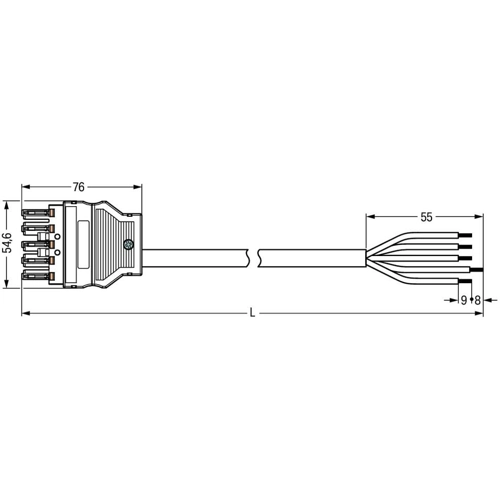

Connection cable, 6 m, socket, 5 pole straight to open end, 2.5 mm², 771-8985/107-603
Connecting line, 771-8985/107-603, WAGO
The WINSTA MIDI Connecting line 5-pole. This pluggable installation connector is useful when requirements repeat or is distributed on a specified grid, for example for installing grid lighting or flush-mount lighting. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
The Connecting line is equipped with a socket and a free end. The WINSTA Pluggable Connection System is ideally tailored to the strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, more reliable, and error-free. Use of this pre-assembled system decreases assembly times and errors during installation at the construction site. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too!.
Features
- Pluggable installation connector with protection against mismating
- For supplying power to power supply units
- Convenient installation and commissioning
| Filter | Property | Value |
|---|---|---|
| Version | connection line | |
| Cable length | 6 m | |
| Connection (2) | open end | |
| Cable cross-section | 2.5 mm² | |
| Coding | L | |
| Connection (1) | socket, 5 pole | |
| Connection 1 design | straight |
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
