771-8985/107-404 | WAGO

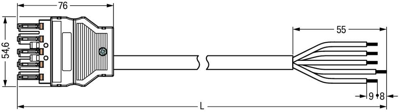

Connection cable, 4 m, socket, 5 pole straight to open end, 2.5 mm², 771-8985/107-404
Connecting line, 771-8985/107-404, WAGO
The WINSTA MIDI Connecting line 5-pole provides the foundation for assembly of solid and fine-stranded conductors. This pluggable installation connector can be used when specifications repeat or is distributed on a specific grid, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20.
The This WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too!.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- With L coding for supplying power in automation
- Rapid, structured electrical installation
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable cross-section | 2.5 mm² | |
| Version | connection line | |
| Coding | L | |
| Cable length | 4 m | |
| Connection 1 design | straight | |
| Connection (1) | socket, 5 pole |
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
