771-8985/107-203 | WAGO

Connection cable, 2 m, socket, 5 pole straight to open end, 2.5 mm², 771-8985/107-203

Order No.: 45P3402
EAN: 4050821122838
MPN:
771-8985/107-203
Series: WINSTA MIDI

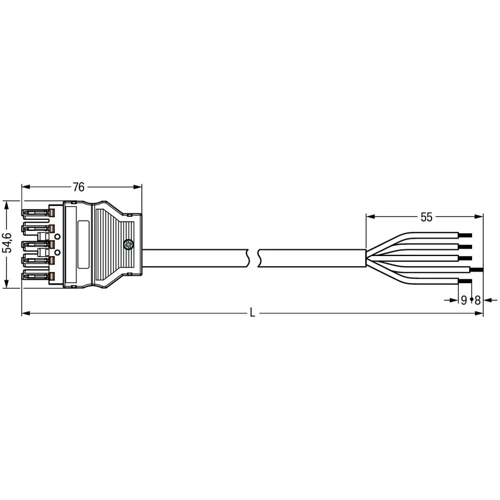

771-8985/107-203 WAGO Pre-assembled Connector Systems Image 1
771-8985/107-203 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
21.2296 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
21.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.2296 €

Connecting line, 771-8985/107-203, WAGO

The WINSTA MIDI Connecting line with protection against mismating. On PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to establish connections according to various requirements in seconds. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20.

The cable is pre-assembled with a socket and a free end. The WINSTA Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and consequently more efficient, even more reliable, and error-free. Using this pre-assembled system decreases assembly times and errors during installation at the construction site.

Features

  • Pluggable installation connector with protection against mismating
  • For automation controllers
  • With L coding for supplying power in automation
  • Ready to install and use immediately
  • Fast, secure installation
Technical specifications
Cable length 2 m
Coding L
Cable cross-section 2.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) socket, 5 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
