771-5001/159-000 | WAGO

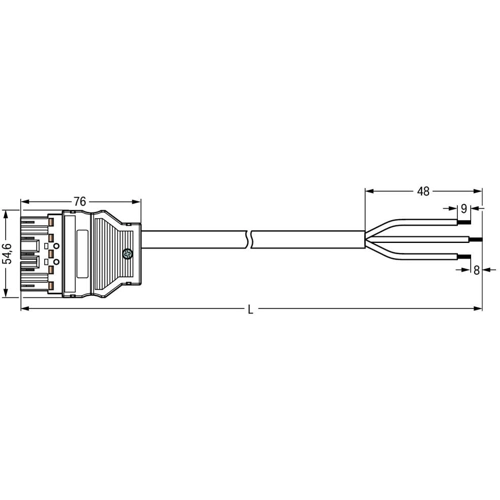

Connection cable, 4 m, plug, 5 pole straight to open end, 1.5 mm², 771-5001/159-000
Connecting line, 771-5001/159-000, WAGO
The WINSTA MIDI Connecting line 5-pole provides the foundation for assembly of fine-stranded and solid conductors. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. Through its Push-in Cage Clamp spring pressure connection technology, it guarantees time-saving, error-free installation and offers flexibility and customization for meeting all installation requirements.
The WINSTA Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and thus faster, more reliable, and error-free. Using this pre-assembled system reduces time spent on assembly and installation errors at the construction site.
Features
- Pluggable installation connector with protection against mismating
- Simple circuits
- For lighting management
- Rapid, structured electrical installation
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Coding | I | |
| Cable length | 4 m | |
| Connection 1 design | straight | |
| Connection (1) | plug, 5 pole |
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
