893-269 | WAGO

Tap module, 2 pole, light gray, 893-269

Order No.: 45P8347
EAN: 4045454267308
MPN:
893-269
Series: WINSTA KNX

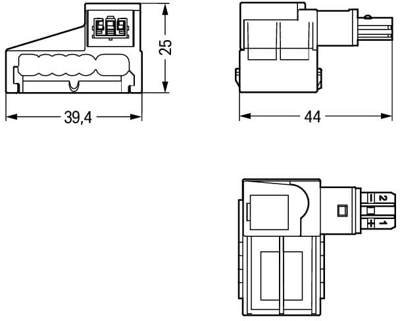

893-269 WAGO PCB Connection Systems Image 1

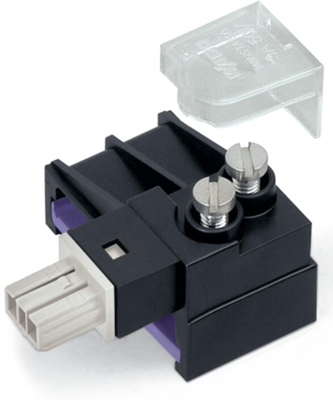

893-269 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
23.919 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.919 €

Tap-off module, 893-269, WAGO

With the WINSTA IDC tap-off module with protection against mismating. A WAGO pluggable installation connector is used when a specification repeats or is planned on a defined grid, for example for installing grid light or flush-mount light. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual component - including protection against mismating. The pluggable installation connector offers protection against contact with live component in accordance with protection type IP20 (When mated: IP2xC (This compact connector is not designed for use in open, easily accessible area!)). The harmonised KNX interface represents a manufacturer-independent communication protocol for intelligently networking state-of-the-art home and building system technology. WINSTA IDC pluggable installation connector with F coding is used in low-voltage application.

WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It offers fast, secure and, above all, error-free installation of components and cables. Now you can also cut installation costs without compromising quality and safety: with protection against mismating reduces the need for servicing and prevents unnecessary downtime.

Features

  • Effective protection against mismating
  • Products perfectly tailored to your requirements guarantee safe use
  • For high-power connections for supplying power
  • Custom-engineered solutions
  • Convenient installation and commissioning
Technical specifications
Rated voltage 50 V
Version tap module
contact surface tin-plated
Connection IDC connection
Rated current 3 A
Pin number 2 pole
Colour light gray
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
