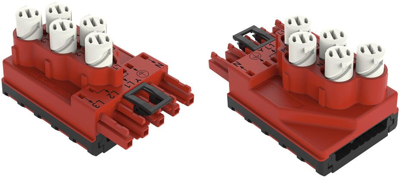

Tap module, 5 pole, red, 772-268
Tap-off module, 772-268, WAGO
The WINSTA IDC tap-off module P coding provides the foundation for installation of solid and fine-stranded conductor. The pluggable installation connector with spring pressure connection technology works entirely without screw connection. It allows flexible, error-free installation in a large number of possible use. The coding option reduces installation error, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid object in accordance with protection type IP20 (When mated: IP2xC (This compact connector is not designed for use in open, easily accessible area!)). A UPS application for IT technology mostly uses the red WINSTA IDC pluggable installation connector with P coding. This pluggable installation connector can be used for a voltage load of up to 25 A. Therefore, it can also be used for high power load.
The WINSTA Pluggable Connection System is ideally tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus faster, more reliable, and error-free. Use of this pre-assembled system reduces assembly times and errors during installation at the construction site.
Features
- Protection against mismating eliminates errors
- Saves time, since no wiring is required at the construction site
- With P coding for fault-free power supply
- Ready for immediate use
- Quick replacement of defective units during ongoing operation
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Type of locking | Yes | |
| Version | tap module | |
| Connection | IDC connection | |
| Colour | red | |
| Rated current | 25 A |
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
