MMU01020C3002FB300 | Vishay

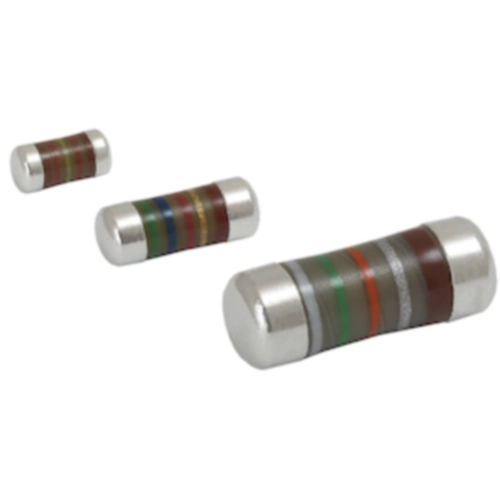

Resistor, thin film, SMD 0102, MicroMELF, 30 kΩ, 0.2 W, ±1 %, MMU01020C3002FB300
Unit Price (€ / pc.)
0.0428 € *
Available: 190 pcs.
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0428 €
500 pcs.
0.0381 €
1000 pcs.
0.0345 €
3000 pcs.
0.0333 €
6000 pcs.
0.0286 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD thin-film resistors, size 0102, Micro-MELF, 0.2 W, tolerance 1.0 %, type Vishay/Beyschlag MMU 0102 Professional.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 30 kΩ | |
| Design | SMD 0102 | |
| min. operating temperature | -55 °C | |

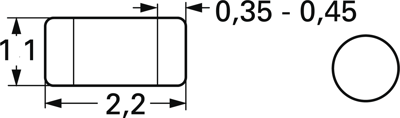

| diameter | 1.1 mm | |
| Tolerance | ±1 % | |
| Enclosure | MicroMELF | |
| Length | 2.2 mm | |
| Temperature coefficient | ±50 ppm/K | |
| Technology | thin film | |
| Power | 0.2 W | |
| max. operating temperature | 155 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85332100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
