MMU01020C1002FB300 | Vishay

Resistor, thin film, SMD 0102, MicroMELF, 10 kΩ, 0.2 W, ±1 %, MMU01020C1002FB300

Order No.: 06E296
EAN: 4099879154880
MPN:
MMU01020C1002FB300
Series: MMU 0102
MMU01020C1002FB300 Vishay SMD Resistors Image 1
MMU01020C1002FB300 Vishay SMD Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.0797 € *
Available: 3,000 pcs.
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0797 €
300 pcs.
0.0559 €
1000 pcs.
0.0464 €
3000 pcs.
0.0405 €
10000 pcs.
0.0357 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD thin-film resistors, size 0102, Micro-MELF, 0.2 W, tolerance 1.0 %, type Vishay/Beyschlag MMU 0102 Professional.

Technical specifications
Filter Property Value
max. operating temperature 155 °C
Tolerance ±1 %
min. operating temperature -55 °C

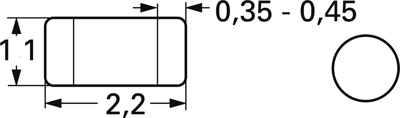

diameter 1.1 mm
Temperature coefficient ±50 ppm/K
Technology thin film
Enclosure MicroMELF
Length 2.2 mm
Design SMD 0102
Power 0.2 W
ohmic resistance 10 kΩ
Logistics
Property Value
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 3,000 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
