534B1502JC | Vishay
Wire-wound potentiometer, 10 turns, 5 kΩ, 2 W, linear, solder lug, 534B1502JC
Unit Price (€ / pc.)
19.0876 € *
Next delivery: 7 pcs. on 2026-01-26
Total Price:
19.09 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0876 €
10 pcs.
16.7909 €
50 pcs.
15.6604 €
150 pcs.
14.9702 €
500 pcs.
14.2205 €
*incl. VAT plus shipping costs
Subject to prior sale

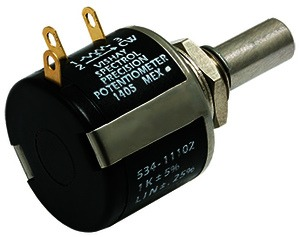

Multi turn wirewound potentiometer, 534-502 5K0, Vishay
This multi-turn wirewound potentiometer offers increased accuracy and control with its ability to make multiple rotations.

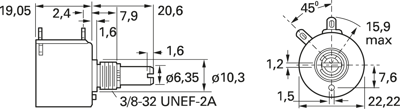

Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 5 kΩ | |
| Width | 19.1 mm | |
| Connection | solder lug | |
| Mechanic rotary range | 3600 ° | |
| Rotary range, electrical | 3600 ° | |
| axle diameter | 6.35 mm | |
| max. operating temperature | 125 °C | |
| Power | 2 W | |
| min. operating temperature | -55 °C | |
| Version | wire-wound potentiometer | |
| Assembly | straight | |
| Track Taper | linear | |
| max. number of revolutions | 10 | |
| Length | 22.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
