14910F0GJSX10103KA | Vishay

Cermet precision potentiometer, 10 kΩ, 1 W, linear, solder pin, 14910F0GJSX10103KA

Order No.: 67E8620
EAN: 4099879970831
MPN:
14910F0GJSX10103KA
Series: 149

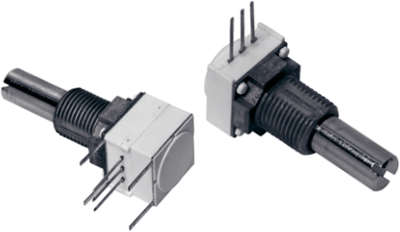

14910F0GJSX10103KA Vishay Potentiometers Image 1

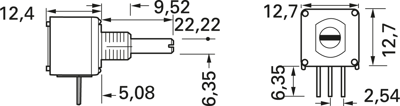

14910F0GJSX10103KA Vishay Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
15.6961 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
15.70 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6961 €
25 pcs.
13.8159 €
50 pcs.
13.3280 €
200 pcs.
12.5902 €
500 pcs.
12.1142 €
*incl. VAT plus shipping costs
Subject to prior sale

Cermet potentiometer, 149-SXG 56 S 103 SP, Vishay

Characterized by a low temperature coefficient, the cermet element maintains its performance consistently across different temperatures.

Technical specifications
Filter Property Value
Connection solder pin
Mechanic rotary range 300 °
Contact distance RM 2.54
min. operating temperature -40 °C
Width 12.7 mm
Rotary range, electrical 270 °
Assembly angled
max. operating temperature 150 °C
Track Taper linear
Power 1 W
Length 12.7 mm
ohmic resistance 10 kΩ
axle diameter 6.35 mm
Version cermet precision potentiometer
Logistics
Property Value
Original Packaging Bar with 25 pieces
Customs tariff number 85334010
Country of origin CZ
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
