14910F0GJSX10102KA | Vishay

Cermet precision potentiometer, 1 kΩ, 1 W, linear, solder pin, 14910F0GJSX10102KA

Order No.: 67E8616
EAN: 4099879970817
MPN:
14910F0GJSX10102KA
Series: 149

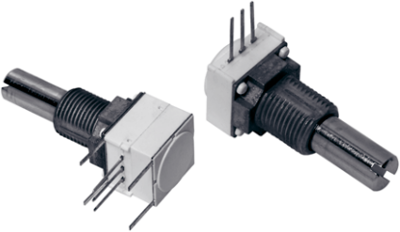

14910F0GJSX10102KA Vishay Potentiometers Image 1
14910F0GJSX10102KA Vishay Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
15.9936 € *
Available: 24 pcs.
Total Price:
15.99 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9936 €
25 pcs.
14.0777 €
50 pcs.
13.5898 €
200 pcs.
12.8282 €
500 pcs.
12.3522 €
*incl. VAT plus shipping costs
Subject to prior sale

Cermet potentiometer, 149-SXG 56 S 102 SP, Vishay

Characterized by a low temperature coefficient, the cermet element maintains its performance consistently across different temperatures.

Technical specifications
min. operating temperature -40 °C
max. operating temperature 150 °C
Track Taper linear
Contact distance RM 2.54
Length 12.7 mm
Connection solder pin
Mechanic rotary range 300 °
ohmic resistance 1 kΩ
Width 12.7 mm
axle diameter 6.35 mm
Rotary range, electrical 270 °
Version cermet precision potentiometer
Assembly angled
Power 1 W
Logistics
Original Packaging Bar with 25 pieces
Customs tariff number 85333100
Country of origin GB
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
