14910F0GJSX10101KA | Vishay

Cermet precision potentiometer, 100 Ω, 1 W, linear, solder pin, 14910F0GJSX10101KA

Order No.: 67E8610
EAN: 4099879970787
MPN:
14910F0GJSX10101KA
Series: 149

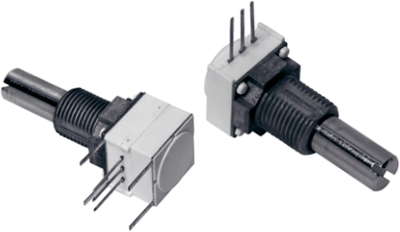

14910F0GJSX10101KA Vishay Potentiometers Image 1
14910F0GJSX10101KA Vishay Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
10.3054 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
257.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
10.3054 €

Cermet potentiometer, 149-SXG 56 S 101 SP, Vishay

Characterized by a low temperature coefficient, the cermet element maintains its performance consistently across different temperatures.

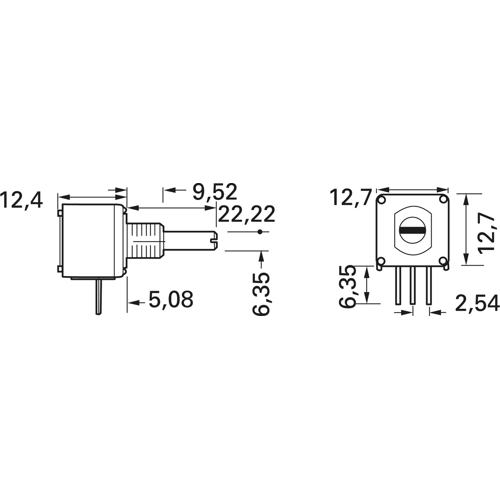

Technical specifications
Track Taper linear
Assembly angled
Width 12.7 mm
Mechanic rotary range 300 °
Power 1 W
Length 12.7 mm
Contact distance RM 2.54
axle diameter 6.35 mm
Version cermet precision potentiometer
min. operating temperature -40 °C
Connection solder pin
max. operating temperature 150 °C
Rotary range, electrical 270 °
ohmic resistance 100 Ω
Logistics
Country of origin CN
Customs tariff number 85333100
Original Packaging Bar with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
