TPC-REM240-24 | TRACO POWER
Power supply, 24 to 27 VDC, 10 A, 120 W, TPC-REM240-24
Unit Price (€ / pc.)
72.3758 € *
Available in 10 days: 146 pcs. - if ordered today
Total Price:
72.38 € *
Price list
Quantity
Price per unit*
1 pcs.
72.3758 €
10 pcs.
65.1406 €
*incl. VAT plus shipping costs
Subject to prior sale

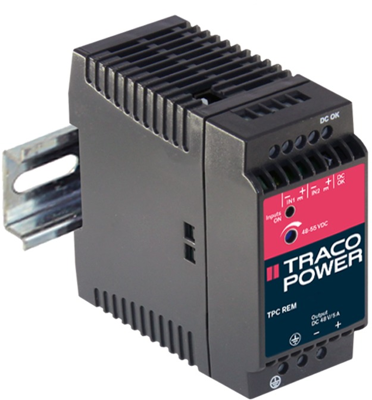

Power supply, TPC-REM240-24, Traco
The TPC REM240-24 is an external unit for operation with two TPC power supplies with an output voltage of 24 VDC or 48 VDC and the same type and power. With this module, two outputs of TPC power supplies can be connected together to achieve a reliable DC supply. If one of the power supplies fails during redundancy operation, the output power is fully provided by the remaining operating power supply. The redundancy of the DC system is monitored by a DC OK signal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 96.5 mm | |
| Degree of protection (IP) | IP20 | |
| Output current | 10 A | |
| Width | 45 mm | |
| efficiency | 87 % | |
| Number of outputs | 1 | |
| Input voltage AC | 24-28 VDC | |
| Power | 120 W | |
| Output voltage DC | 24 to 27 VDC | |
| Depth | 90 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
