THD 15-2422WIN | TRACO POWER

DC converter, 9-36 VDC, 15 W, 2 outputs, ±12 VDC, 89 % efficiency, THD 15-2422WIN

Order No.: 33C905
EAN: 4099891335991
MPN:
THD 15-2422WIN
Series: THD 15WIN

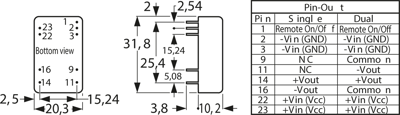

THD 15-2422WIN TRACO POWER DC/DC Converters Image 1

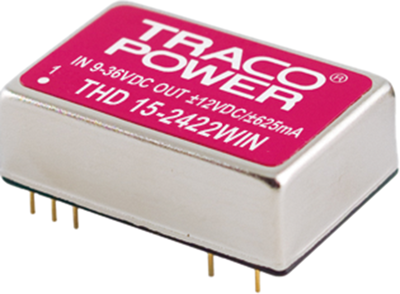

THD 15-2422WIN TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
62.8439 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
62.84 € *
Price list
Quantity
Price per unit*
1 pcs.
62.8439 €
10 pcs.
56.5488 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco THD 15WIN.

15 W converter in DIL-24 package with 4 : 1 extended-range inputs. High performance density. Features: input filter to EN 55022 (class A), shielded metal package with insulated base plate, industrial standard pinning, no burden required. Input voltage fluctuation: 0.2/0.5 % (single/dual modules). Load fluctuation at single/dual outputs: 0.5 %/1.0 %. Residual ripple: 60 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VDC. MTBF: min. 410000 h/+25 °C.

Input voltage range from 9.0 to 36 VDC.

Technical attributes (type, number of outputs, output voltage, output current, efficiency): THD 15-2422WIN, 2 x OUT, ±12 VDC, ±625 mA, 89 %

Technical specifications
Filter Property Value
Number of outputs 2
Output current 625 mA
Output voltage DC ±12 VDC
Input voltage AC 9-36 VDC
Power 15 W
efficiency 89 %
Design DIP24
Isolation voltage 1.5 kV
Length 31.8 mm
Width 20.3 mm
Height 10.2 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
