Unit Price (€ / pc.)
4.8671 € *
Standard delivery time from the manufacturer is: 12 Weeks

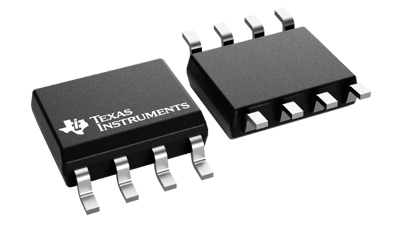

Operational Amplifier, OPA227U, Texas Instruments
The operational amplifier combines low noise and wide bandwidth with high precision to make it an excellent choice for applications requiring both AC and precision DC performance. The is unity-gain stable and features a high slew rate (2.3 V/µs) and wide bandwidth (8 MHz). This operational amplifier is an excellent choice for professional audio equipment. In addition, its low quiescent current and low cost make this op amp an excellent choice for portable applications requiring high precision.
Applications
- Data acquisition (DAQ)
- Condition monitoring sensor
- Spectrum analyzer
- Professional audio amplifier (rack mount)
- Industrial AC-DC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-8 | |
| Assembly | SMD | |
| Number of channels | 1 | |
| Version | precision operational amplifier | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
