100007576 | Telegärtner
LC-plug, GOF/POF, multimode, ceramic, blue, 100007576
Unit Price (€ / pc.)
72.0545 € *
Available: 0 pcs.
Leadtime: On Request **
J88074A0002 from Telegärtner at Bürklin electronik

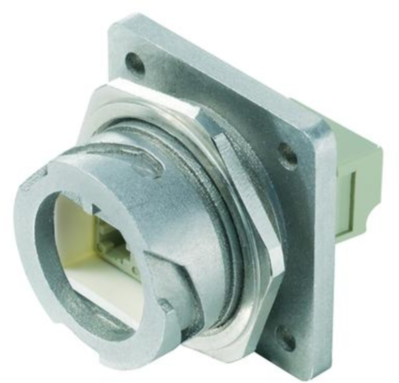

Find detailed information about the product on our site J88074A0002 from Telegärtner. The manufacturer description for this product is: STX V1 Flangeset LC-D-Coupling MM MetalMore information about J88074A0002
- Optional with RJ45 Cat.6A(IEC), Cat.6 Class EA(IEC), USB or fiber optic insert available. Rugged zinc die casting- or plastic housing. Recording from cables with diameter 5-10 mm. Pre-assembled plug and set article for high ease of assembly. Easy mounting of flanges with central screw connection or 4 screws. Available with bend protection spiral for compliance with bending radii for FO and Cu cables. Catch cord made of NBR on the protective cap. Field for marking labels. Variant 1 to IEC 61076-3-106. Protection class IP67.
- Designation: STX V1 Flangeset
- Housing: Metal
- Fiber type: Multimode
- Einsatz: LC Duplex
- Installation dimension: Z124, Z125
Technical features
- Mounting type: Flange
- Color: Aluminium
- Suitable for fiber type: Multimode
- Connector type Connection 1: LC-Duplex
- Connector type Connection 2: LC-Duplex
- Housing material: Metal
Technical specifications
| Connection | glue connection | |
| Version | LC-plug | |
| Colour | blue | |
| Chamfer type | multimode | |
| Ferrule | ceramic | |
| Category | GOF/POF | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85367000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Substance description | Lead |
