B72510T0110K062 | TDK (EPCOS)
Varistor, SMD 0805, VV 18 V, 120 A, 14 V (DC), 11 V (AC), ±10 %, 0.005 VA (AC), 0.2 J, B72510T0110K062
Unit Price (€ / pc.)
0.5355 € *
Available: 6,345 pcs.
Total Price:
5.35 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5355 €
50 pcs.
0.3927 €
250 pcs.
0.3213 €
1000 pcs.
0.2725 €
2000 pcs.
0.2428 €
*incl. VAT plus shipping costs
Subject to prior sale

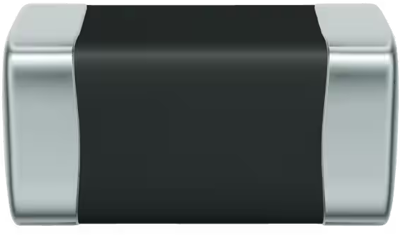

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.
Chip package, molded, good soldering properties, low-inductance

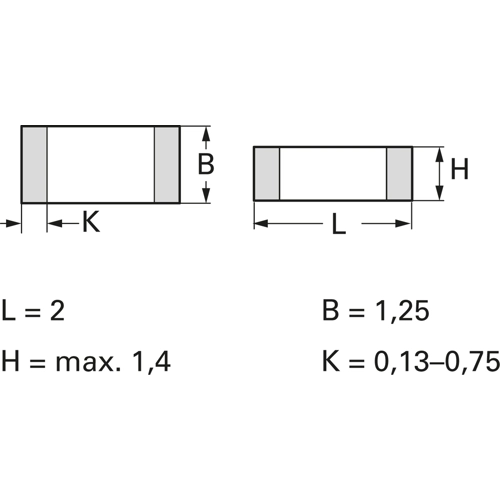

Size 0805, type B72510.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | SMD 0805 | |
| Varistor Voltage Type | 18 V | |
| max. Surge current, transient (8/20 µs) | 120 A | |
| Rated voltage (DC) | 14 V | |
| Rated voltage (AC) | 11 V | |
| Tolerance | ±10 % | |
| Power dissipation | 0.005 W | |
| Energy absorption | 0.2 J | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Standard number | UL, IEC, CECC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
