B82720K2301N040 | TDK (EPCOS)
Power line choke, radial, 12 mH, 300 mA, B82720K2301N040
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.9754 € *
Standard delivery time from the manufacturer is: 28 Weeks
Power line chokes, type TDK/Epcos B82720A.
Current-compensated ring core double choke for line applications
Vertical version, type B82720K.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| Inductance | 12 mH | |
| DC current | 300 mA | |
| Tolerance | -30/+50 % | |
| DC resistance | 1.1 Ω | |
| Measuring frequency | 10 kHz | |
| Design | radial | |

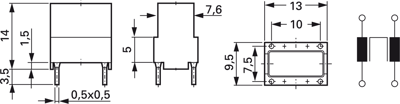

| Length | 13 mm | |
| Width | 9.5 mm | |
| Height | 14 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
| Original Packaging | Carton with 150 pieces |
Compliance
| Property | Value |
|---|---|
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
