B82144A2473J000 | TDK (EPCOS)

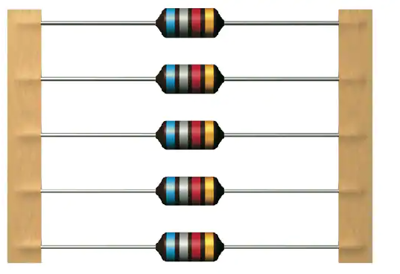

RF choke, axial, 47 µH, 800 mA, B82144A2473J000
Unit Price (€ / pc.)
0.6212 € *
Available: 877 pcs.
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6212 €
10 pcs.
0.4439 €
100 pcs.
0.3796 €
500 pcs.
0.3296 €
1000 pcs.
0.2999 €
*incl. VAT plus shipping costs
Subject to prior sale
RF choke, B82144A2473J000, EPCOS
Features
- Very wide inductance range
- High rated current
- Suitable for wave soldering
- RoHS-compatible
Applications
- RF blocking and filtering
- Decoupling and interference suppression
- For telecommunications, automotive electronics, energy-saving lamps, entertainment electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | RF choke | |
| Inductance | 47 µH | |
| DC current | 800 mA | |
| Tolerance | ±5 % | |
| DC resistance | 500 mΩ | |
| Measuring frequency | 100 kHz | |
| Quality Q | Q 40 | |
| Design | axial | |
| Length | 12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Bulk with 1,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
