B82144A2105J000 | TDK (EPCOS)

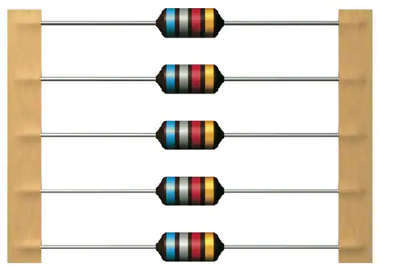

RF choke, axial, 1 mH, 200 mA, B82144A2105J000
Unit Price (€ / pc.)
0.9758 € *
Available: 1,408 pcs.
Leadtime: On Request **
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9758 €
10 pcs.
0.6069 €
50 pcs.
0.4879 €
250 pcs.
0.4046 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
**Subject to prior sale
RF choke, B82144A2105J000, EPCOS
Features
- Very wide inductance range
- High rated current
- Suitable for wave soldering
- RoHS-compatible
Applications
- RF blocking and filtering
- Decoupling and interference suppression
- For telecommunications, automotive electronics, energy-saving lamps, entertainment electronics
Technical specifications
| Quality Q | Q 60 | |
| DC current | 200 mA | |
| Length | 12 mm | |
| DC resistance | 3.8 Ω | |
| Measuring frequency | 100 kHz | |
| Version | RF choke | |
| Design | axial | |
| Tolerance | ±5 % | |
| Inductance | 1 mH |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 1,500 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
