2-1415535-0 | Schrack
Coupling relay 4 Form C (NO/NC), 230 V (AC), 19465 Ω, 6 A, 240 V (AC), 2-1415535-0
Unit Price (€ / pc.)
42.4711 € *
Available in 5 Days: 20 pcs. - if ordered today

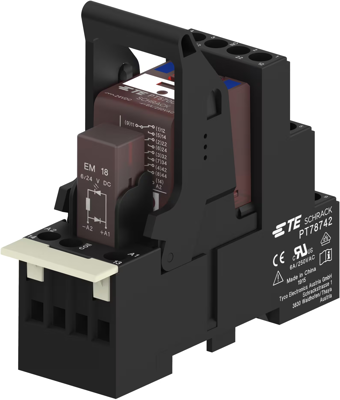

Panel plug-in relay, 2-1415535-0, Schrack
Power relay, Industrial panel plug-In, Monostable, AC, 1 VA/.9 VA Coil Power Rating AC, 19465 Ω Coil Resistance.
Features
- Mechanical and electrical indicator
Applications
- PLC control panels
- Automation Panels
- Machine industry
- Elevator industry
- Building management
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 240 V | |
| Rated current | 6 A | |
| Coil resistance | 19465 Ω | |
| Coil voltage (AC) | 230 V | |
| Contact type | 4 Form C (NO/NC) | |
| Coil type | monostable | |
| Connection | screw connection | |
| Product type | coupling relay | |
| Contact material | AgNi 90/10 + Au |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
