NSYCVF65M230PF | Schneider Electric

Fan, 230 V, 124 x 124 x 55 mm, 65 m³/h, Schneider Electric NSYCVF65M230PF

Order No.: 04P0401
EAN: 3606480151378
MPN:
NSYCVF65M230PF
Series: Climasys CV

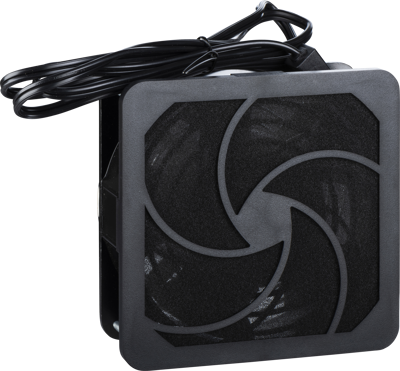

NSYCVF65M230PF Schneider Electric Panel-Mount Fans
Image may differ
Unit Price (€ / pc.)
52.9669 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
52.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
52.9669 €

Fan, NSYCVF65M230PF, Schneider Electric

Climasys Forced ventilator with outlet grille plastic and filter. 230 V 50/60 Hz input voltage. Free flow rate w/o filter/grille is 170 m3/h. Free flow rate w/ std. filter is 65 m3/h at 50 Hz. ABS for outlet grille, Polyurethane foam for filter. Black color. IP20. Cut-out dimensions 108 mm.

Technical specifications
Filter Property Value
Width 124 mm
Volume flow 65 m³/h
Degree of protection (IP) IP20
Rated voltage 230 V
Height 124 mm
Depth 55 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 84145925
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Sustainable Yes
SVHC free No
Date of RoHS guidelines 3/31/15
