103269 | Riegler
Ball valve, L 148 mm, 40 bar, brass, nickel-plated, for pipe systems, 103269
Order No.: 64G0191
EAN: 4047322216111
MPN:
103269
3350.10
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
165.5528 € *
Available in 3 Days: 1 pcs. - if ordered today
Total Price:
165.55 € *
Price list
Quantity
Price per unit*
1 pcs.
165.5528 €
2 pcs.
161.2093 €
*incl. VAT plus shipping costs
Subject to prior sale

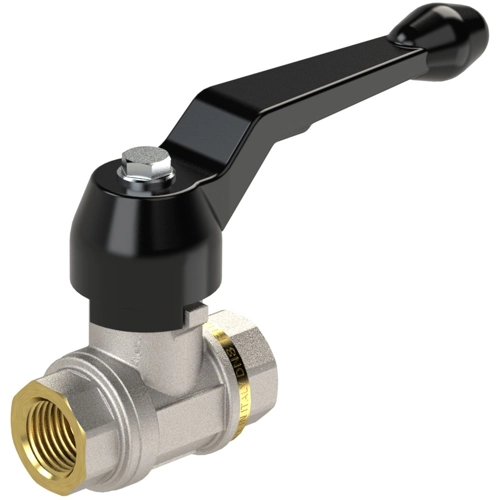

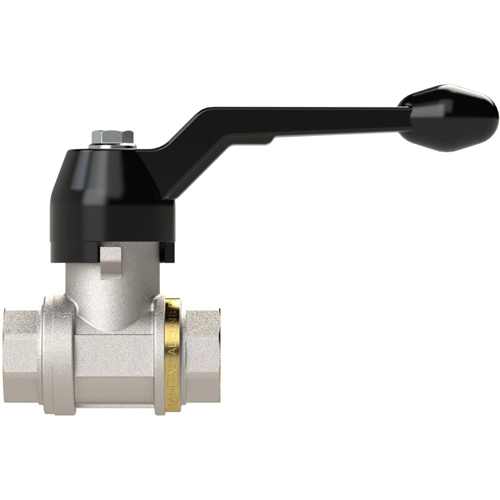

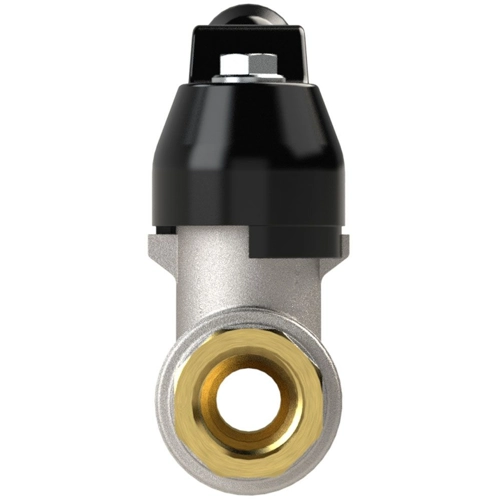

Ball valve, 103269, Riegler
Ball valve heavy duty design, Manual lever, IT/IT, nickel-plated brass, Operating temperature -20 °C to 130 °C, G 2 1/2, PN max. 40 bar.
Features
- Full Bore
- Aluminium hand / wing lever
- High quality and a long service life guaranteed by extensive tests both during after the production process
Applications
- Compressed air
- Water
- Neutral and non-toxic gases
- Fuel oil (light distillate)
- Fuel oil (heavy)
- Lubricating oils
- Diesel oils
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | ball valve | |
| Thread size | G2 1/2 | |
| Pressure | 40 bar | |
| Material | brass, nickel-plated | |
| Length | 148 mm | |
| Suitable for | pipe systems |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 84818081 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
