RPX-4.0-CT | RECOM
DC converter, 3.8-36 VDC, 20 W, 1 output, 1-7 VDC, 87 % efficiency, RPX-4.0-CT
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.8655 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
8.87 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8655 €
10 pcs.
7.9611 €
*incl. VAT plus shipping costs
Subject to prior sale

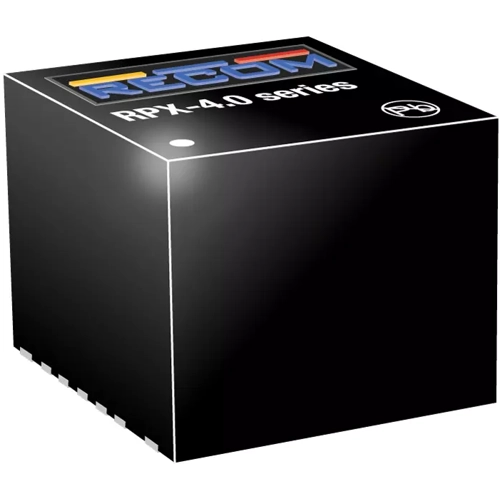

Buck converter, RPX-4.0-CT, RECOM
The RPX-4.0-CT is a buck converter with an integrated inductor in a compact 5 mm x 5.5 mm x 4.1 mm thermally-enhanced QFN package. The output current is up to 4 A and is fully protected against continuous short-circuits, output overcurrent, or over-temperature faults, making the device particularly suitable for industrial automation, test and measurement, portable devices, and high density or weight-sensitive applications.
Features
- Buck regulator power module with integrated shielded inductor
- Enable, power good, soft start
- Flip-chip technology for improved thermal behavior
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 4 A | |
| Output voltage DC | 1-7 VDC | |
| Input voltage AC | 3.8-36 VDC | |
| Power | 20 W | |
| efficiency | 87 % | |
| Design | QFN-15 | |
| Length | 5.5 mm | |
| Width | 5 mm | |
| Height | 4.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
