R-78HB5.0-0.5 | RECOM
DC converter, 9-72 VDC, 3 W, 1 output, 5 VDC, 87 % efficiency, R-78HB5.0-0.5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
16.3982 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
16.40 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3982 €
20 pcs.
14.9464 €
42 pcs.
14.5180 €
*incl. VAT plus shipping costs
Subject to prior sale

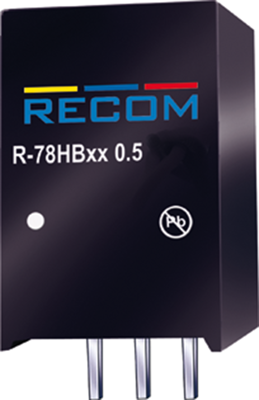

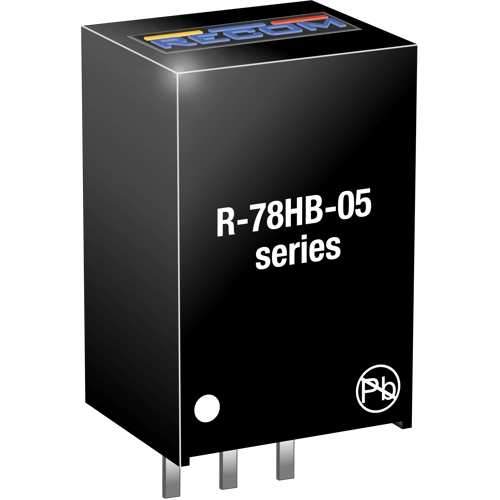

DC/DC converter, type Recom R-78HB.
Switching mode regulator, pin compatible with LM78xx. Output voltage tolerance: typical/max. ±2.0/±3.0%. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, output voltage, output current, efficiency at min./max. input voltage): R-78HB5.0-0.5, 9.0 to 72 V, 5.0 V, 0.5 A, 87/81 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 500 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 9-72 VDC | |
| Power | 3 W | |
| efficiency | 87 % | |
| Design | SIP3 | |

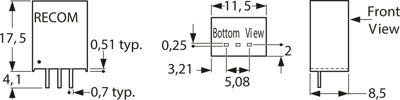

| Length | 11.5 mm | |
| Width | 8.5 mm | |
| Height | 17.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Original Packaging | Bar with 42 pieces |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
