QT20.241 | PULS
Power supply, 24 to 28 VDC, 20 A, 480 W, QT20.241
Unit Price (€ / pc.)
383.0134 € *
Available: 13 pcs.
Leadtime: 3 Weeks **
Total Price:
383.01 € *
Price list
Quantity
Price per unit*
1 pcs.
383.0134 €
3 pcs.
371.5180 €
10 pcs.
358.7493 €
25 pcs.
349.1817 €
*incl. VAT plus shipping costs
**Subject to prior sale

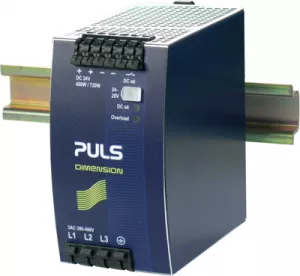

Power supplies, type PULS DIMENSION Q-Serie.
Suitable supports parallel and series mode. Minimum inrush current. 50 % power reserve. Active harmonics correction; Operating temperatures: –25 to +70 °C. Certifications: UL, CSA, IEC 60950-1.
3-phase, 20 A output current, type QT20.241.
Input voltage: 3 x 380 to 480 VAC (±15 %). Output ripple: 100 mVpp. MTBF: 501 kh. Dimensions: W 65, H 124, D 127 mm. Weight: 870 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): QT20.241, 24 V, 480 W, -/-/22/22 ms, -/-/95/94.8 %
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 to 28 VDC | |
| Output current | 20 A | |
| Width | 65 mm | |
| Input voltage AC | 380-480 VAC | |
| Height | 124 mm | |
| Power | 480 W | |
| Degree of protection (IP) | IP20 | |
| Depth | 127 mm | |
| efficiency | 95 % |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85043180 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
