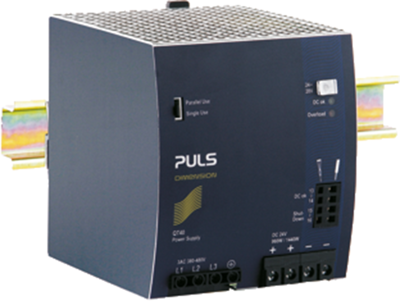

QT40.241 | PULS
Power supply, 24 to 28 VDC, 40 A, 960 W, QT40.241
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
510.51 € *
Standard delivery time from the manufacturer is: 4 Weeks
Power supplies, type PULS DIMENSION Q-Serie.
Suitable supports parallel and series mode. Minimum inrush current. 50 % power reserve. Active harmonics correction; Operating temperatures: –25 to +70 °C. Certifications: UL, CSA, IEC 60950-1.
3-phase, 40 A output current, type QT40.241.
With shut-down input; Input voltage: 3 x 380 to 480 VAC (-15/+20 %), 600 VDC (-25/+35 %). Output ripple: 100 mVpp. MTBF: min. 500 kh. Dimensions: W 110, H 124, D 127 mm. Weight: 1500 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): QT40.241, 24 V, 960 W, -/-/25/25 ms, -/-/95.3/95.2 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 40 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 380-480 VAC | |
| Power | 960 W | |
| efficiency | 95.3 % | |
| Degree of protection (IP) | IP20 | |
| Width | 110 mm | |
| Height | 124 mm | |
| Depth | 127 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
