1208869 | Phoenix Contact

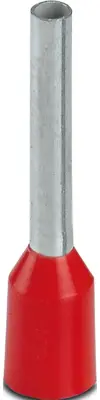

Insulated wire end ferrule, 1.0 mm², 10 mm long, UL 486F-E, red, 1208869
Unit Price (€ / pc.)
0.0559 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0559 €
100 pcs.
0.0452 €
500 pcs.
0.0405 €
1000 pcs.
0.0357 €
*incl. VAT plus shipping costs
Subject to prior sale
Ferrule, 1208869, Phoenix Contact
Ferrule, color: red
Features
- Due to the increased diameter of the insulating collar, this type of ferrule is specifically used with AWG cables
- These ferrules enable practical crimping of conductors with increased insulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 10 mm | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C | |
| Standard number | UL 486F-E | |
| Isolated | Yes | |
| Contact material | copper | |
| Colour | red | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
