1091577 | Phoenix Contact

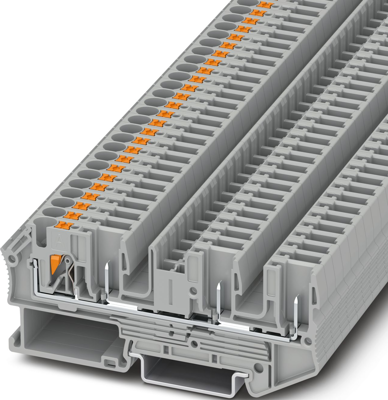

Through terminal block, push-in/plug connection, 0.2-6.0 mm², 32 A, 8 kV, gray, 1091577
Unit Price (€ / pc.)
2.5564 € *
Available in 5 Days: 17 pcs. - if ordered today
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5564 €
10 pcs.
2.3738 €
50 pcs.
2.2156 €
100 pcs.
2.0771 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal block, 1091577, Phoenix Contact
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, Thermal continuous current Ith: 32 A, connection method: Push-in / plug connection, cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Ideal as a plug-in ring feeder terminal block for voltage or signal distribution in modular systems manufacturing.
- The 4 mm² Push-in connection can be used as potential infeed
- Automatically produced cable harnesses can be used
- Coding accessories from the COMBI series prevent incorrect connection or mismatching when using several connectors
- High vibration resistance with optional latching and strain relief accessories
- Double bridge shaft for additional potential distribution or test accessories can be used
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-10 | |
| Length | 90.8 mm | |
| Rated current | 32 A | |
| Height | 36.8 mm | |
| Colour | gray | |
| Rated surge voltage | 8 kV | |
| Width | 6.2 mm | |
| Connection | push-in/plug connection | |
| Version | through terminal block | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.2-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
