0790491 | Phoenix Contact
Through terminal block, bolt connection, 1.0-25 mm², 1 pole, 101 A, 8 kV, gray, 0790491
Unit Price (€ / pc.)
13.9772 € *
Available in 5 Days: 22,250 pcs. - if ordered today
Total Price:
13.98 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9772 €
10 pcs.
13.0454 €
50 pcs.
12.2300 €
100 pcs.
11.5106 €
*incl. VAT plus shipping costs
Subject to prior sale

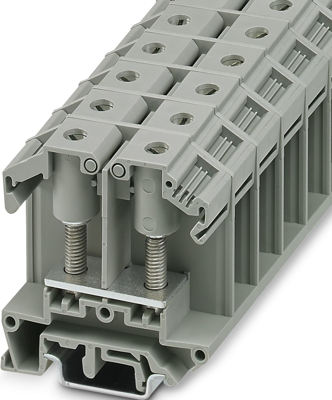

Feed-through terminal block, 0790491, Phoenix Contact
Universal terminal block with bolt connection, slotted-head screw, cross section: 1 - 25 mm², width: 18 mm, color: gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Colour | gray | |
| Length | 60 mm | |
| Width | 18.1 mm | |
| Version | through terminal block | |
| AWG cross-section | AWG 16-4 | |
| Rated surge voltage | 8 kV | |
| Rated Voltage | 800 V | |
| Pin number | 1 pole | |
| Cable cross-section | 1.0-25 mm² | |
| Connection | bolt connection | |
| Height | 63.1 mm | |
| Rated current | 101 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
