1244073 | Phoenix Contact

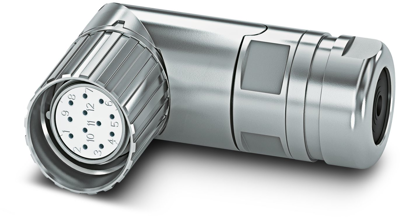

Jack, M23, 12 pole, crimp connection, screw locking, angled, 1244073
Unit Price (€ / pc.)
56.5131 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
56.51 € *
Price list
Quantity
Price per unit*
1 pcs.
56.5131 €
5 pcs.
54.8947 €
10 pcs.
53.3715 €
25 pcs.
51.9316 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 1688227, Phoenix Contact
D-SUB contact insert, shell size 2, with 5 signal contacts with solder cup, straight, accommodation for two combined contacts, type of contact pin, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-15.
Features
- Unshielded
- Contact material: Copper alloy
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Product type | jack | |
| Contact connection | crimp connection | |
| Thread size | M23 | |
| Type of locking | screw locking | |
| Degree of protection (IP) | IP67 | |
| Orientation | angled | |
| Coding | N | |
| Assembly | cable assembly | |
| Pin number | 12 pole |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
