1239091 | Phoenix Contact

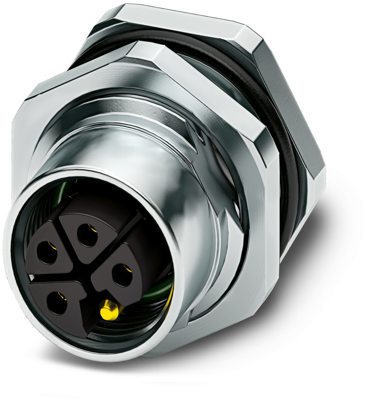

Panel socket, M12, 5 pole, solder connection, straight, 1239091
Unit Price (€ / pc.)
19.8928 € *
Available in 10 days: 10 pcs. - if ordered today
Total Price:
19.89 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8928 €
10 pcs.
18.6495 €
25 pcs.
17.5525 €
50 pcs.
16.5774 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector rear mounting, 1239091, Phoenix Contact
Device connector rear mounting, Power, 5-position, Socket, straight, M12, coding: L, Rear mounting, M16 x 1.5, Wave soldering, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Easy PCB assembly: one-piece connectors for wave soldering
- For compact devices: transmit high power in a confined space
- Easy-to-install, optimized XL housing contour with wrench size 19
- Mechanical tightening limitation for long-term-stable gasket
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Contact connection | solder connection | |
| Assembly | rear mounting | |
| Product type | panel socket | |
| Coding | L | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
