1237971 | Phoenix Contact

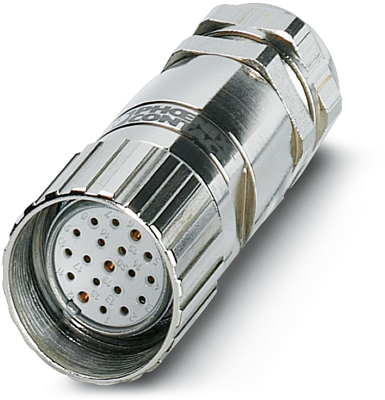

Jack, M23, 19 pole, solder connection, screw locking, straight, 1237971
Order No.: 62P6392
EAN: 4063151384531
MPN:
1237971
V-RC/TGUM 13/KVD 13/LBL 16+3X
Unit Price (€ / pc.)
64.9621 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
64.96 € *
Price list
Quantity
Price per unit*
1 pcs.
64.9621 €
2 pcs.
63.1057 €
5 pcs.
61.3564 €
10 pcs.
59.6904 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable connector, 1237971, Phoenix Contact
Cable connector, number of positions: 19, status display: no; master cable connection: M23 screw locking, shielding: no, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Thread size | M23 | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Product type | jack | |
| Pin number | 19 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
