1027476 | Phoenix Contact

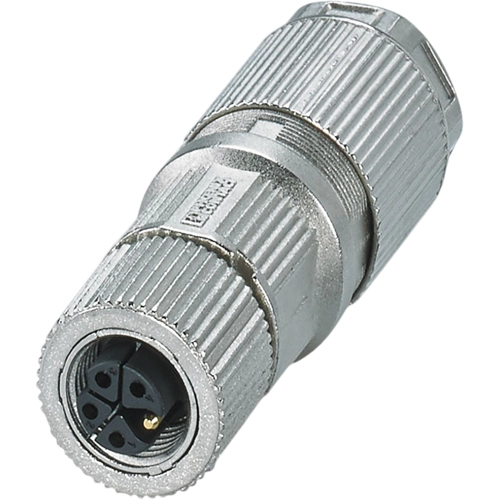

Jack, M12, 5 pole, crimp connection, push-lock, straight, 1027476
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
37.6040 € *
Available in 10 days: 465 pcs. - if ordered today
Total Price:
37.60 € *
Price list
Quantity
Price per unit*
1 pcs.
37.6040 €
5 pcs.
35.9499 €
10 pcs.
34.4267 €
25 pcs.
33.0344 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 1027476, Phoenix Contact

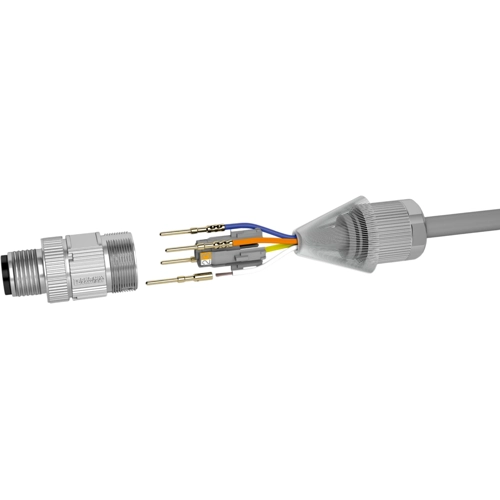

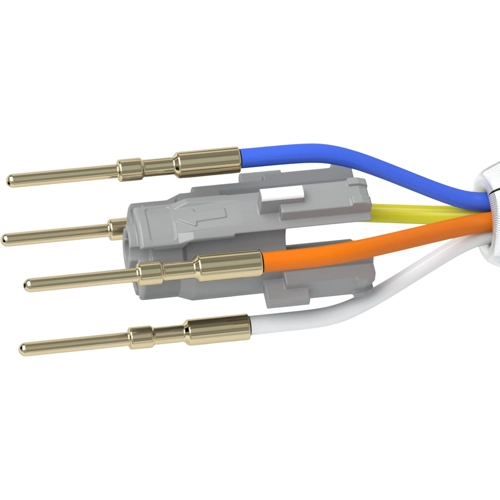

Power connector, Power, 5-position, shielded, Socket straight M12, coding: K, Crimp connection, knurl material: Zinc die-cast, tin-plated, external cable diameter 8 mm ... 13 mm, without crimp contacts, Contact 5 leading.
Features
- Extremely compact, thanks to the small wiring space and high contact density
- Safely shielded: reliable shield connection even under extreme mechanical strain
- Robust connection: suitable for railway applications with high shock and vibration loads
- High-performance: AC connectors for up to 16 A and 690 V AC
- Protected seal in the M12 socket
- Protection against mismatching, thanks to special K-coding
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Version | 8-13 mm | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | K | |
| Type of locking | push-lock | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| contact surface | tin-plated | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Electrical equipment take-back |  |
