1804097 | Phoenix Contact

PV connection cable, 235 mm, socket, 1 pole straight to open end, 2.5 mm², 1804097

Order No.: 64P4772
EAN: 4046356661034
MPN:
1804097
Series: SUNCLIX
1804097 Phoenix Contact Pre-assembled Connector Systems Image 1
1804097 Phoenix Contact Pre-assembled Connector Systems Image 2
1804097 Phoenix Contact Pre-assembled Connector Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.1646 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.16 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1646 €
10 pcs.
4.7005 €
50 pcs.
4.2721 €
100 pcs.
3.8913 €
*incl. VAT plus shipping costs
Subject to prior sale

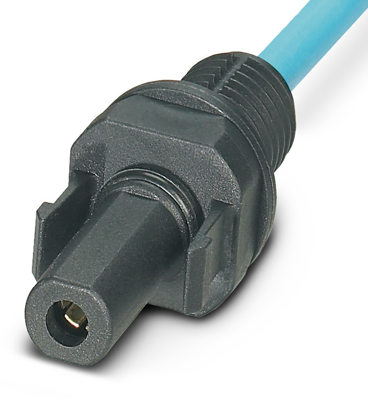

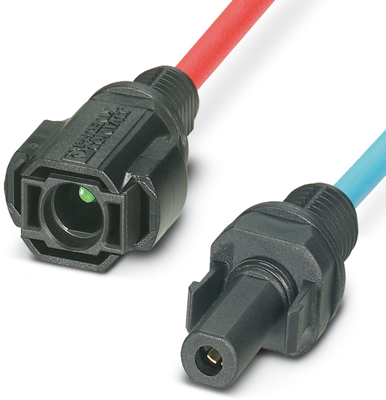

PV connection cable, 1804097, Phoenix Contact

Device connector front mounting, Range of articles: SUNCLIX, color: black, number of positions: 1, min. conductor cross section: 2.5 mm², rated voltage: 1000 V DC, rated current: 27 A, Connection method: Crimp, Contact connection type: Socket, cable length: 235.

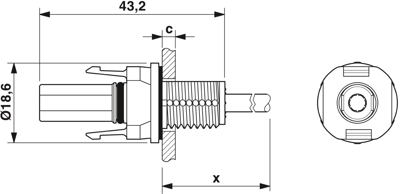

Technical specifications
Cable length 235 mm
Connection 1 design straight
Cable cross-section 2.5 mm²
Connection (1) socket, 1 pole
Version PV connection cable
Connection (2) open end
Logistics
Customs tariff number 85444290
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
