1725737 | Phoenix Contact

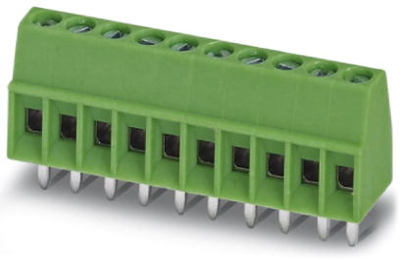

PCB terminal, 10 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725737

Phoenix Contact
default L
default S
Images may differ
Order No.:  63P5056
Manufacturer:  Phoenix Contact
Manufacturer SKU:
1725737
MPT 0,5/10-2,54
EAN: 4017918116330
about the green icons
Total price
( 5.8072 € * / pcs.)
5.81 €
Available: 84 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
5.8072 €
10 pcs.
5.1051 €
100 pcs.
4.4863 €
250 pcs.
4.3078 €
1000 pcs.
4.0222 €
*incl. VAT plus shipping costs
Show 3 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

PCB terminal, 1725737, Phoenix Contact

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 2.54 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Extremely small design for the respective conductor cross section
Technical specifications
Connection screw connection
AWG cross-section AWG 26-20
Width 25.86 mm
Colour green
Height 12 mm
Contact distance RM 2.54
Cable cross-section 0.14-0.5 mm²
Rated voltage 160 V
Rated current 6 A
Pin number 10 pole
Grid 2.54 mm
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Width
Unit
Pin number
Cable cross-section
Grid
Unit
Height
Unit
Connection
Colour
Rated voltage
Unit
AWG cross-section
Contact distance
Rated current
Unit
Search results: 1 item in 3 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Width
Pin number
Cable cross-section
Grid
Height
Connection
Colour
Rated voltage
AWG cross-section
Contact distance
Rated current
PCB terminal, 3 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725669
PCB terminal, 3 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725669
Order No.:
 63P5049
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1725669
1.73 € *
1 pcs.
1.7255 €
25 pcs.
1.4637 €
100 pcs.
1.3566 €
250 pcs.
1.2852 €
1000 pcs.
1.1781 €
Available: 57 pcs.
Next delivery: 250 pcs. on 2023-11-03
Leadtime
8.08 mm
3 pole
0.14-0.5 mm²
2.54 mm
12 mm
screw connection
green
160 V
AWG 26-20
RM 2.54
6 A
PCB terminal, 10 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725737
PCB terminal, 10 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725737
Order No.:
 63P5056
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1725737
5.81 € *
1 pcs.
5.8072 €
10 pcs.
5.1051 €
100 pcs.
4.4863 €
250 pcs.
4.3078 €
1000 pcs.
4.0222 €
Available: 84 pcs.
Leadtime
25.86 mm
10 pole
0.14-0.5 mm²
2.54 mm
12 mm
screw connection
green
160 V
AWG 26-20
RM 2.54
6 A
PCB terminal, 2 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725656
PCB terminal, 2 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725656
Order No.:
 63P5047
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1725656
11.66 € *
10 pcs.
1.1662 €
50 pcs.
1.0234 €
250 pcs.
0.8925 €
1000 pcs.
0.7735 €
2500 pcs.
0.7140 €
Available: 232 pcs.
Leadtime
5.54 mm
2 pole
0.14-0.5 mm²
2.54 mm
12 mm
screw connection
green
160 V
AWG 26-20
RM 2.54
6 A
