1725669 | Phoenix Contact

PCB terminal, 3 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725669

Order No.: 63P5049
EAN: 4017918116262
MPN:
1725669
MPT 0,5/ 3-2,54
Phoenix Contact
default L
front L

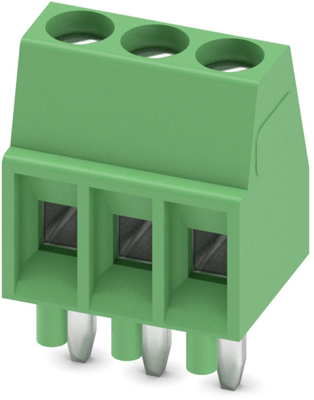

Image may differ
Unit Price (€ / pc.)
1.7493 € *
Available: 131 pcs.
Leadtime: On Request **
Total Price:
1.75 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7493 €
25 pcs.
1.4875 €
100 pcs.
1.3804 €
250 pcs.
1.3090 €
1000 pcs.
1.2019 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1725669, Phoenix Contact

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 2.54 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Extremely small design for the respective conductor cross section
Technical specifications
Connection screw connection
AWG cross-section AWG 26-20
Width 8.08 mm
Colour green
Height 12 mm
Contact distance RM 2.54
Cable cross-section 0.14-0.5 mm²
Rated voltage 160 V
Rated current 6 A
Pin number 3 pole
Grid 2.54 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
