2708999 | Phoenix Contact
CAN D-Sub bus connector, 9 pole, 2708999
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
57.5960 € *
Available in 5 Days: 1,198 pcs. - if ordered today
Total Price:
57.60 € *
Price list
Quantity
Price per unit*
1 pcs.
57.5960 €
2 pcs.
55.8110 €
5 pcs.
53.0740 €
10 pcs.
49.4088 €
*incl. VAT plus shipping costs
Subject to prior sale

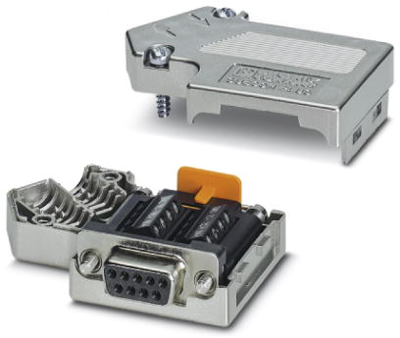

D-SUB bus connector SUBCON-PLUS-CAN/SC2, 2708999, Phoenix Contact
D-SUB connector, 9-pin socket, two cable entries at 35° on two terminal rows, bus system: CAN, CANopen, SafetyBus-P up to 1 MBit/s, terminating resistor switchable via slide switch, pin assignment: 2,3,7,9; screw terminals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bussystem | CAN | |
| Pin number | 9 pole | |
| Degree of protection (IP) | IP40 | |
| Bus Connection | D-Sub | |
| Contact connection | screw connection | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
