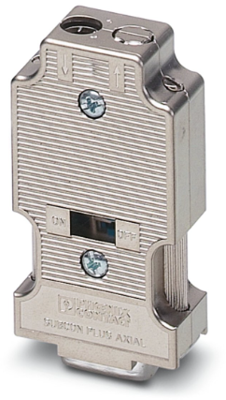

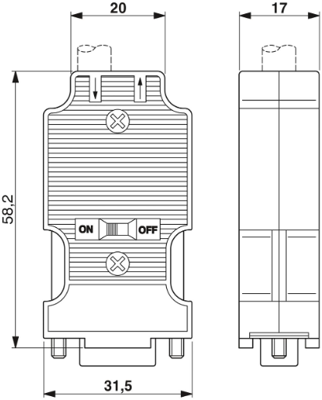

CAN D-Sub bus connector, 9 pole, 2306566
Unit Price (€ / pc.)
59.9284 € *
Standard delivery time from the manufacturer is: 4 Weeks

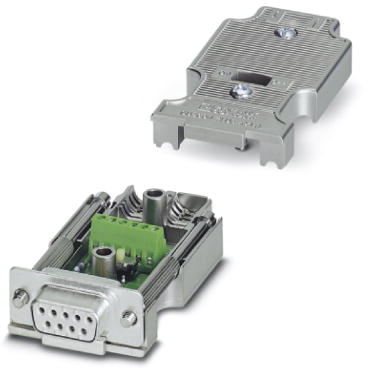

Bus connector, 2306566, Phoenix Contact
The SUBCON-PLUS-CAN is specifically designed for use in CAN systems. Under field conditions, it enables the quick and easy connection of the incoming and outgoing bus line. The terminating resistor is already integrated in all versions. It can be connected externally by means of a slide switch. At the same time, the outgoing bus segment is switched off. This makes it easy to start up segment by segment while incorrect terminations are avoided.
Features
- Separate terminal blocks for bus cables
- Segment-by-segment startup
- High transmission speed
- Assembly under field conditions
- Flexibility in terms of cable entry selection
- High level of EMC
- Suitable for bus cables according to CiA Draft Recommendation 303-1 with an outside diameter of 8 mm
- Termination resistor can be connected
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bussystem | CAN | |
| Degree of protection (IP) | IP30 | |
| Contact connection | PCB connection | |
| Pin number | 9 pole | |
| Bus Connection | D-Sub |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
