1252472 | Phoenix Contact
Grommet housing, size B24, PA, clip locking, IP54, 1252472
Unit Price (€ / pc.)
51.2771 € *
Available in 5 Days: 98 pcs. - if ordered today
Total Price:
51.28 € *
Price list
Quantity
Price per unit*
1 pcs.
51.2771 €
5 pcs.
49.0161 €
10 pcs.
46.9455 €
25 pcs.
45.0415 €
*incl. VAT plus shipping costs
Subject to prior sale

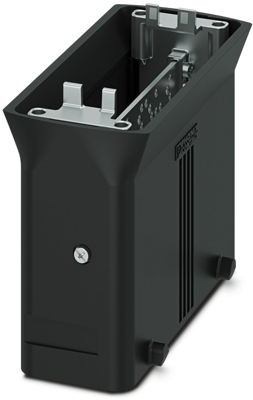

Housing, 1252472, Phoenix Contact

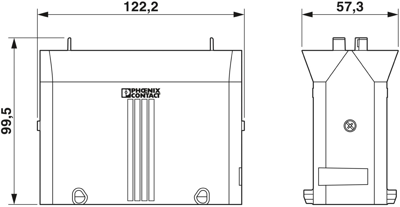

Sleeve housing B24, for double locking latch, material: PA, straight, height: 99.5 mm, cable gland: none, Adapter sleeve for the CES cable entry system, Can be optimally combined with modular contact inserts.
Features
- Labeling option using 9 x 20 mm marking label
- Simple assembly of multiple cables in a HEAVYCON housing
- Halogen-free plastic
- Marking label can be attached
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | PA | |
| Shell size | B24 | |
| Type of locking | clip locking | |
| Degree of protection (IP) | IP54 | |
| Version | grommet housing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
