2900338 | Phoenix Contact
Interface relay 2 Form C (NO/NC), 24 V (DC), 1.33 kΩ, 50 mA, 250 V (DC), 250 V (AC), 2900338
Unit Price (€ / pc.)
20.1943 € *
Available in 5 Days: 2,808 pcs. - if ordered today
Total Price:
20.19 € *
Price list
Quantity
Price per unit*
1 pcs.
20.1943 €
10 pcs.
18.9329 €
25 pcs.
17.8143 €
50 pcs.
16.8266 €
*incl. VAT plus shipping costs
Subject to prior sale

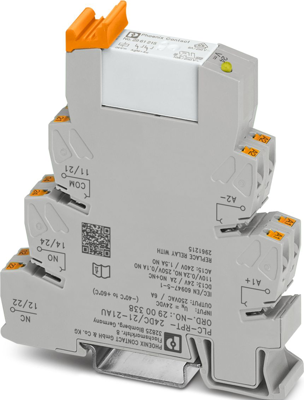

Interface relay module, 2900338, Phoenix Contact
PLC-INTERFACE, consisting of PLC-BPT/21-21 basic terminal block with Push-in connection and plug-in miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7,5, 2 changeover contacts, input voltage 24 V DC.
Features
- Slim design
- Efficient connection to system cabling using V8 adapter
- Safe isolation between coil and contact side
- RT III sealed relay
- Functional plug-in bridges
- Integrated input circuit and interference suppression circuit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | AgNi, gold-plated | |
| Coil type | monostable | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 1.33 kΩ | |
| Connection | push-in | |
| Contact type | 2 Form C (NO/NC) | |
| Degree of protection (IP) | IP20 | |
| Product type | relay coupler | |
| Status display | LED, yellow | |
| Rated voltage (DC) | 250 V | |
| Rated voltage (AC) | 250 V | |
| Rated current | 50 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
