3240130 | Phoenix Contact

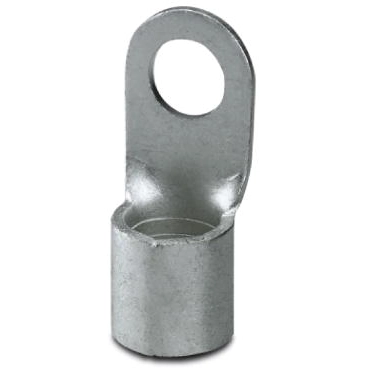

Uninsulated ring cable lug, 150 mm², 17 mm, M16, metal
Order No.: 60P7294
EAN: 4046356453479
MPN:
3240130
C-RC 150/M16 DIN
Unit Price (€ / pc.)
5.4026 € *
Available: 0 pcs.
Leadtime: On Request **
Ring cable lug C-RCEI 2,5/M5
Ring cable lug, blue, 1,5 - 2,5 mm², M5, with inserted copper sleeve, for insulation crimping
The technical characteristics of 3241208 from Phoenix Contact at a glance
- Flange shape: Ring shape
- Product Type Name: Connector
- Product compliant (following DIN): No
- Insulation available: Yes
- Item description: C-RCEI 2,5/M5
- metric connection thread dimension: M5
- min. Nominal cross section: 1.5 mm²
- max. area of the nominal cross section: 2.5 mm²
Technical specifications
| Version | ring cable lug | |
| Colour | metal | |
| Thread size | M16 | |
| Isolated | No | |
| Cable cross-section | 150 mm² | |
| Hole diameter | 17 mm | |
| Material | copper | |
| max. operating temperature | 110 °C | |
| Nominal size according to DIN | DIN 46234 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
