3240091 | Phoenix Contact

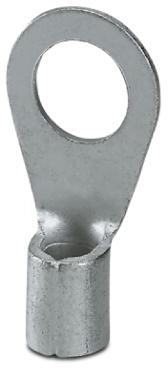

Uninsulated ring cable lug, 10 mm², AWG 8, 8.4 mm, M8, metal
Order No.: 60P7287
EAN: 4046356453080
MPN:
3240091
C-RC 10/M8 DIN
Unit Price (€ / pc.)
0.4879 € *
Available: 160 pcs.
Leadtime: 2 Weeks **
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4879 €
50 pcs.
0.4284 €
100 pcs.
0.3570 €
500 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug C-RC 10/M8 DIN
Ring cable lug, uninsulated, 10 mm², M8
The technical features of 3240091 from Phoenix Contact at a glance
- Article description: C-RC 10/M8 DIN
- Product type name: Connector
- metric connection thread dimension: M8
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 8 | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 10 mm² | |
| Hole diameter | 8.4 mm | |
| Material | copper | |
| max. operating temperature | 110 °C | |
| Nominal size according to DIN | DIN 46234 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
