3240125 | Phoenix Contact

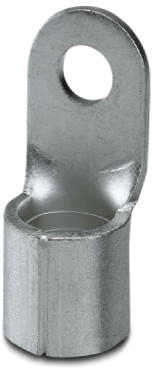

Uninsulated ring cable lug, 125 mm², AWG 4, 10.5 mm, M10, metal, 3240125
Unit Price (€ / pc.)
3.9151 € *
Available in 10 days: 4,515 pcs. - if ordered today
Ring cable lug C-RC 120/M8 DIN
Ring cable lug, uninsulated, 120 mm², M8
The technical characteristics of 3240124 from Phoenix Contact at a glance
- Product Type Name: Connector
- Item description: C-RC 120/M8 DIN
- metric connection thread dimension: M8
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Version | ring cable lug | |
| max. operating temperature | 110 °C | |
| Colour | metal | |
| Hole diameter | 10.5 mm | |
| AWG cross-section | AWG 4 | |
| Thread size | M10 | |
| Material | copper, tin-plated | |
| Cable cross-section | 125 mm² | |
| Nominal size according to DIN | DIN 46234 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
