3240112 | Phoenix Contact

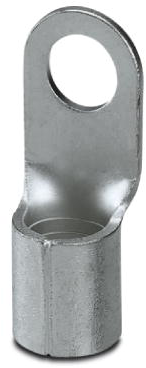

Uninsulated ring cable lug, 50 mm², AWG 1, 10.5 mm, M10, metal, 3240112
Unit Price (€ / pc.)
1.2495 € *
Available: 50 pcs.
Available in 5 Days: 140 pcs. - if ordered today
Fork cable lug C-FC 2,5/M5
Fork cable lug, uninsulated, 1,1 - 2,5 mm², M5
The technical characteristics of 3240145 from Phoenix Contact at a glance
- Item description: C-FC 2,5/M5
- Anzahl der Befestigungslöcher : 1
- Anschlusswinkel : 90°
- Product Type Name: Connector
- Nennquerschnitt : 2.5 mm²
- Kennziffer : 5-2,5
- metric connection thread dimension: M5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 1 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 50 mm² | |
| Thread size | M10 | |
| Nominal size according to DIN | DIN 46234 | |
| Material | copper, tin-plated | |
| max. operating temperature | 110 °C | |
| Version | ring cable lug | |
| Hole diameter | 10.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
