3240101 | Phoenix Contact

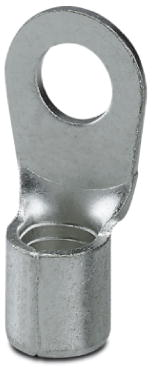

Uninsulated ring cable lug, 25 mm², AWG 4, 8.4 mm, M8, metal, 3240101
Unit Price (€ / pc.)
0.7854 € *
Available: 50 pcs.
Available in 5 Days: 4,600 pcs. - if ordered today
Cable lug C-BCSI 1,5/9X2,8
Flat pinCable lug, red, 0,5 - 1,5 mm², Pin dimension: 20 x 2,8 mm
The technical characteristics of 3240531 from Phoenix Contact at a glance
- Flange shape: Flat pinCable lug
- Product Type Name: Connector
- Product compliant (following DIN): No
- Insulation available: Yes
- Item description: C-BCSI 1,5/9X2,8
- max. area of the nominal cross section: 1.5 mm²
- min. Nominal cross section: 0.5 mm²
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 4 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 25 mm² | |
| Thread size | M8 | |
| Nominal size according to DIN | DIN 46234 | |
| Material | copper, tin-plated | |
| max. operating temperature | 110 °C | |
| Version | ring cable lug | |
| Hole diameter | 8.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
