3240092 | Phoenix Contact

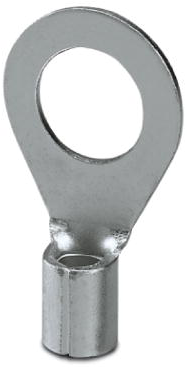

Uninsulated ring cable lug, 10 mm², AWG 8, 10.5 mm, M10, metal, 3240092
Unit Price (€ / pc.)
0.5117 € *
Available in 5 Days: 7,700 pcs. - if ordered today
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4403 €
50 pcs.
0.3927 €
100 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug C-RC 2,5/M10 DIN
Ring cable lug, uninsulated, 1,1 - 2,5 mm², M10
The technical characteristics of 3240082 from Phoenix Contact at a glance
- Product Type Name: Connector
- Item description: C-RC 2,5/M10 DIN
- metric connection thread dimension: M10
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 8 | |
| Hole diameter | 10.5 mm | |
| Colour | metal | |
| Thread size | M10 | |
| max. operating temperature | 110 °C | |
| Nominal size according to DIN | DIN 46234 | |
| Cable cross-section | 10 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
